Loaders

Loaders for Kubota Tractors

.

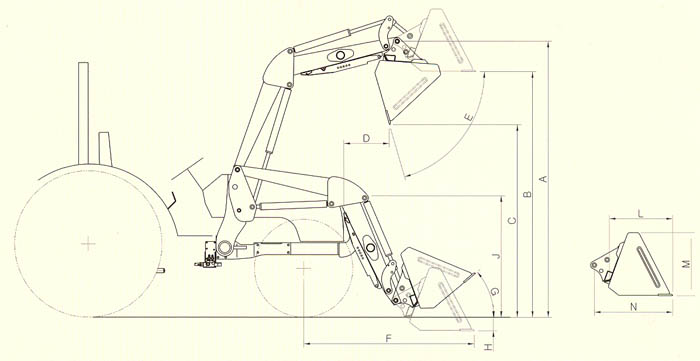

Loader Model 2540 4044 4065 5070 Tractor Model L2800 L3400 L4400 MX5000 M5040 M6040 M7040 A. Maximum Lift Height 102" 107.1" 107.1" 120.5" B. Clearance w/ Attachment Level 95.5" 100.6" 100.6" 101.7" C. Clearance w/ Attachment Dumped 79.7" 82.5" 82.5" 79.8" D. Reach @ Maximum height 19.7" 19.8" 19.8" 18.7" E. Maximum Dump Angle 42 ° 48 ° 48 ° 74 ° F. Reach w/ Attachment on Ground 59.8" 65.6" 65.6" 74.4" G. Attachment Rollback Angle 25 ° 26 ° 26 ° 40 ° H. Digging Depth Below Grade 4.4" 5.0" 5.0" 5.6" J. Overall Height in Carry Position 45.7" 48.2" 48.2" 58.2" L. Depth of Attachment (to back of inner shell) 23.2" 23.2" 23.2" 26.5" M. Height of Attachment 22.2" 22.2" 22.2" 26" N. Depth of Attachment (to pivot pin) 26.3" 26.3" 26.3" 32.2"           Lift Capacity to Full Height @ Pivot Pin 1,250lbs 1,830lbs 1,950lbs 2,520lbs Breakout Force @ Ground level, Pivot Pin 2,460lbs 3,700lbs 3,700lbs 4,310lbs Relief Valve Setting(Loader COntrol Valve) 2,490 psi hyd 2,490 psi hyd 2,490 psi hyd 2,873 psi hyd Lift Cylinder 1.77" x 17.9" 2.16"x17.9" 2.36"x17.9" 2.36"x20.2" Bucket Cylinder 1.77"x20.7" 2.16"x17.9" 2.16"x20.7" 2.36"x18.5" Bucker Size 60" 72" 72" 72"

Bobcat Style Quick Attach Buckets are STANDARD
